How does sound insulation work in construction?
A quiet and comfortable living or working environment starts with good sound insulation. In construction, this plays an important role: nobody wants to be disturbed by traffic noise, neighbour noise, or installations that are constantly audible. But how does sound insulation actually work and which principles are important in buildings?
What is sound insulation?
Soundproofing is about preventing sound waves from passing through. Sound is nothing more than vibrations that travel through air or materials such as walls, floors, and ceilings. Without insulation, these vibrations easily travel through the structure, causing disturbance in adjacent rooms.
Soundproofing should not be confused with sound absorption.
- Absorption: improves the acoustics within a room by reducing reverberation and echo.
- Insulation: ensures that sound does not pass from one space to another.
For optimal results, both are often combined.
The three basic principles of sound insulation
Effective sound insulation in construction relies on three key principles:
- Mass: The heavier a structure, the more difficult it is for sound waves to pass through. Therefore, thick concrete floors insulate better than light wooden floors.
- Decoupling (mass-spring-mass principle): By isolating structures with a resilient material (for example with a floating floor, floating ceiling or a partition wall), you prevent vibrations from being directly transmitted. This principle is crucial in construction to limit low frequencies, such as bass tones or installation vibrations.
- Air tightness: Even small gaps or seams can greatly reduce sound insulation. Sealing with sealant, edge strips, and good connections is therefore indispensable.
Often damping is also mentioned: materials that convert vibrations into heat (for example, special soundproofing panels) further improve performance.
Materials for soundproofing in construction
Depending on the application, different materials are suitable:
- Solid materials: plasterboard, concrete or special mass plates.
- Resilient materials: acoustic damping material, rubber or Sylomer® solutions in hangings and floor constructions.
- Cavity fillings: such as polyester wool or cellulose, which absorb and damp sound waves in an air cavity.
Examples of applications
- Walls: a soundproof partition wall with a cavity filling and double boarding prevents sound transmission between adjoining rooms.

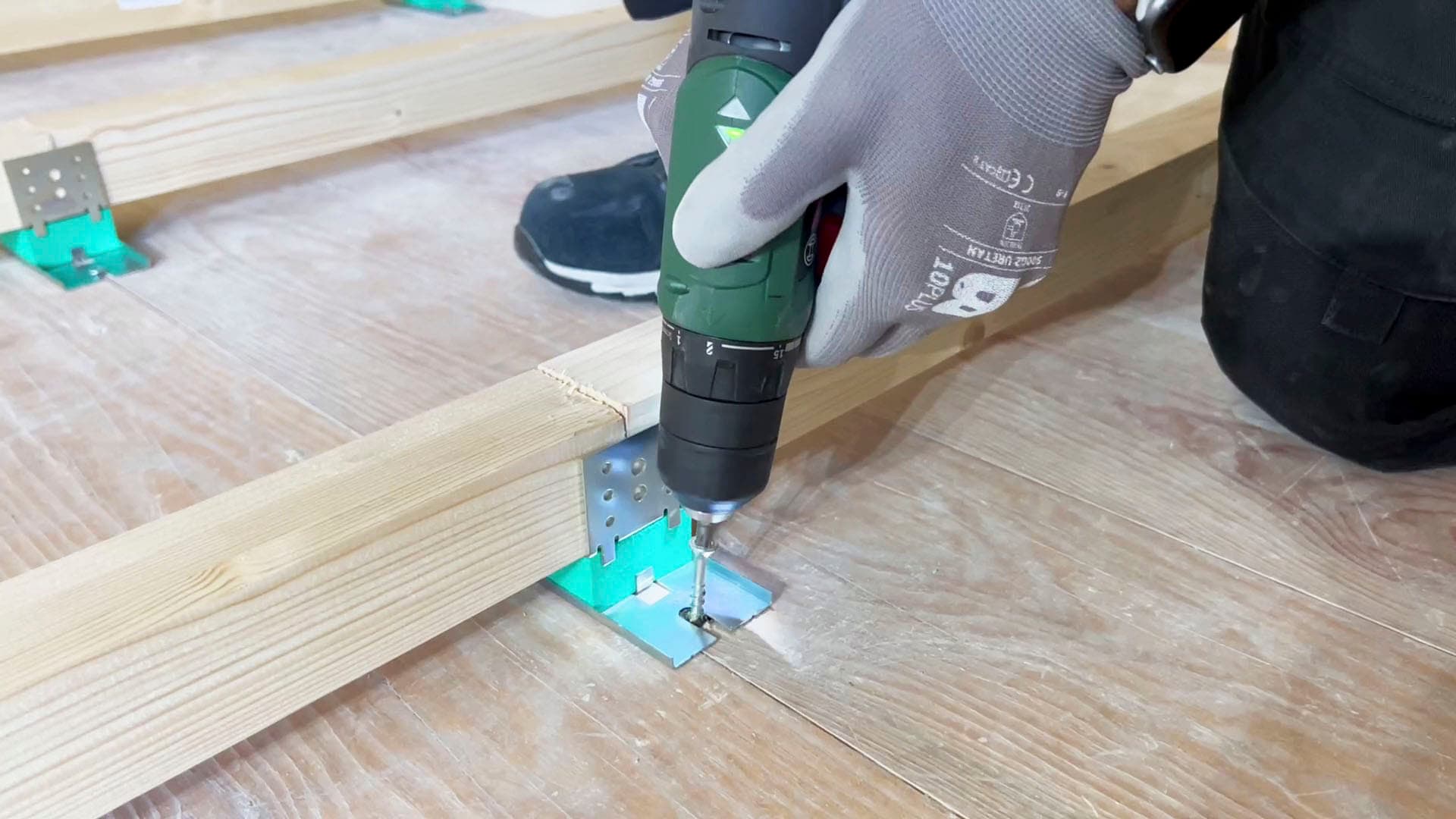

- Floors: a floating floor with decoupled beams and cavity filling reduces impact noise and airborne noise.

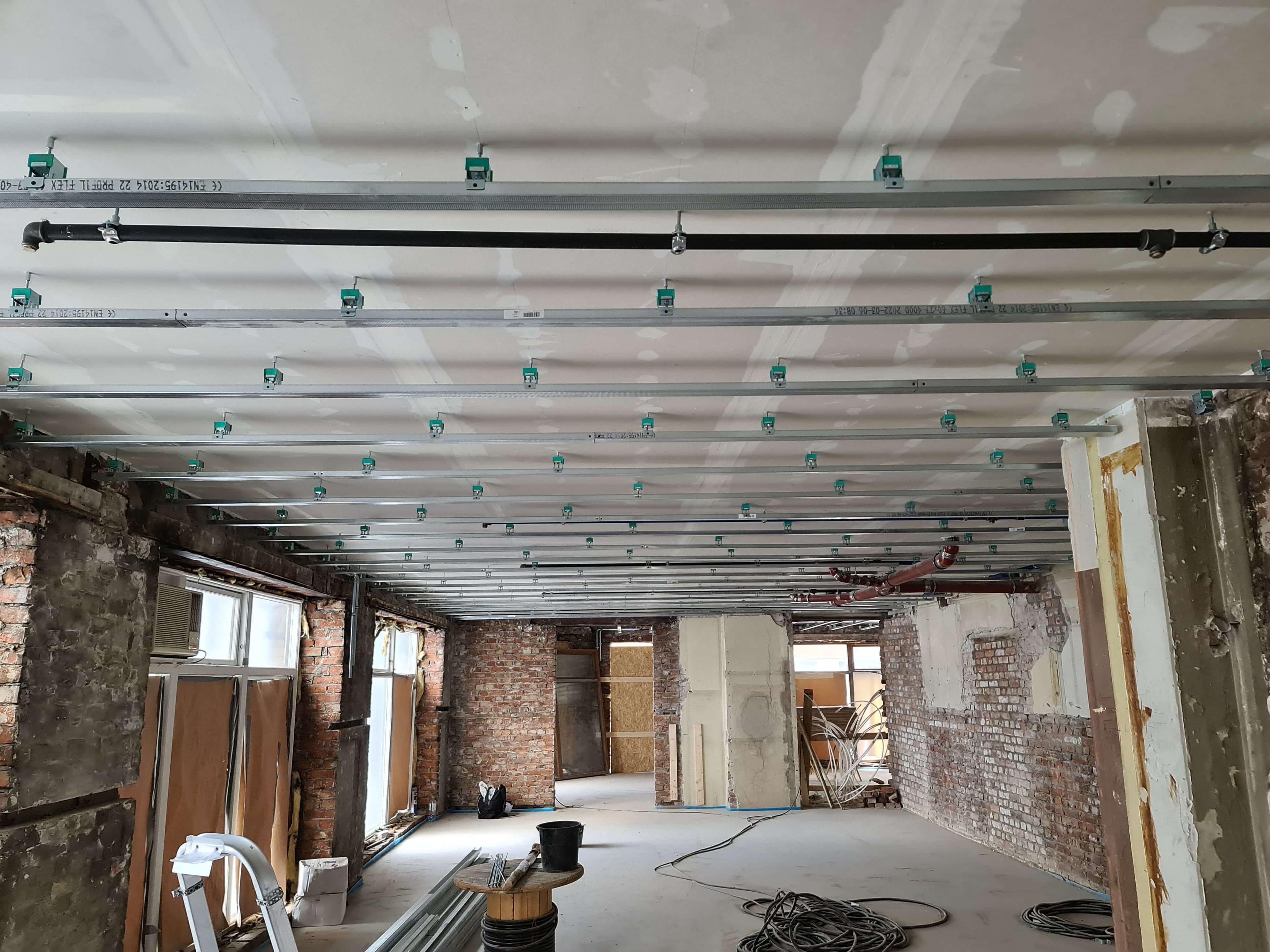

- Ceilings: a lowered ceiling with acoustic suspension systems prevents sound from the upper floor from being audible.
- Installation rooms: heavy enclosures with absorption material limit noise from heat pumps or ventilation systems.
Why is knowledge of frequencies important?
Not all sound is the same. Low tones, such as traffic or bass sounds, are much more difficult to isolate than high tones. This relates to the natural frequency of materials. A light wall resonates more easily with low vibrations, allowing them to pass through. Heavier constructions or decoupled systems shift that resonance to a lower level and improve the insulation.
Conclusion
Sound insulation in construction requires more than just thick walls. It is a combination of mass, decoupling, airtightness, and the right choice of materials. Whether it concerns a residential property, office, or utility building: by considering sound at the design stage, you can prevent complaints later on and improve both the comfort and the quality of the space.
