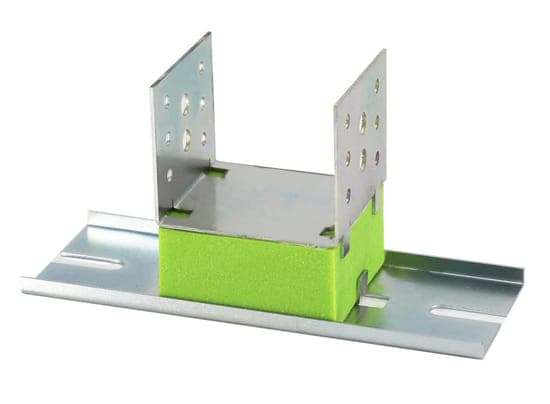

EASYmount wall and ceiling support

The EASYmount wall and ceiling support is suitable for creating decoupled partition walls and ceilings. By combining the system with a cavity fill and a finishing cladding of your choice, you create an effective sound-insulating separation construction.

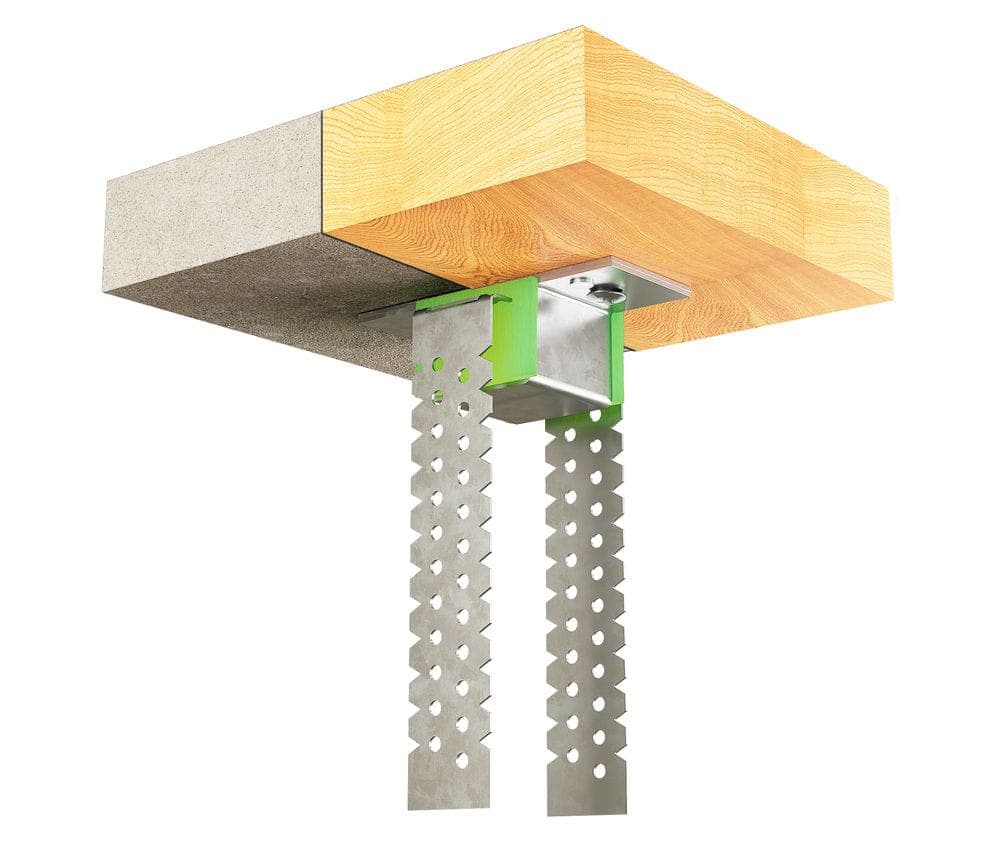

The EASYmount wall and ceiling support are installed in a grid with a spacing of 60 × 120 cm. In each bracket, you mount a wooden slat or a metal stud track, depending on the desired construction.

The perforated metal strips provide a flexible and secure installation, tailored to the desired joist thickness. After installation, any excess material can be easily bent or shortened, ensuring the sheet material fits properly.

When used in ceilings, an additional batten is installed perpendicular to the mounted battens to support the cladding. Between the battens, a cavity filler is applied for extra sound insulation.

Finally, the construction is finished with a closed surface layer, for example with two layers of plasterboard or fiberboard, to ensure a stable and durable wall or ceiling structure.

The metal fastener ensures that the structure remains intact during a fire. Although the acoustic decoupling melts, the wall and/or ceiling construction remains preserved.

The dimensions of the EASYmount wall and ceiling support are displayed in the image below.

The final sound insulation value depends on the combination of the basic structure and the stud wall. Performance may vary based on the construction and materials used.

Do you have questions or need technical advice? Feel free to contact us. We are happy to discuss the best solution for your project.

The EASYmount wall‑ and ceiling support is suitable for use with concrete‑, brick‑, timber‑, and steel structures.

Shortening or bending the mounting brackets does not directly affect the operation of the EASYmount wall and ceiling support. However, the size of the cavity plays a role in the final acoustic result. In general, a larger cavity, combined with cavity fill, contributes to better sound insulation.

Yes. The EASYmount wall and ceiling support is suitable for both horizontal and vertical applications and can therefore be used in wall and ceiling constructions.

Yes. The EASYmount wall‑ and ceiling support is flexible to install because the positioning and distance of the racking are adjustable. This allows for easy adjustment around uneven surfaces and obstacles in the existing wall, resulting in a neatly finished, straight partition wall.

Yes. Thanks to the flexible mounting options, the EASYmount wall and ceiling support is suitable for both small-scale applications and larger acoustic projects.

The EASYmount wall‑ and ceiling support is not visible after installation. The support is integrated into the construction and finished with plasterwork and double cladding, making it completely out of sight.

For correct and stable installation, it is important that the EASYmount wall and ceiling support are evenly distributed in a grid of 120 × 60 cm. Additionally, the brackets must be mechanically fastened to ensure a firm and reliable construction.
