EASYmount ceiling hanger
Acoustic mounting system for fixing suspended ceilings
At the moment, you cannot order this product through our webshop. Please contact us by requesting a quote or asking a question using the buttons below.
- Acoustic decoupling
- Flexible mounting
- Professional result
At the moment, you cannot order this product through our webshop. Please contact us by requesting a quote or asking a question using the buttons below.
- Acoustic decoupling
- Flexible mounting
- Professional result

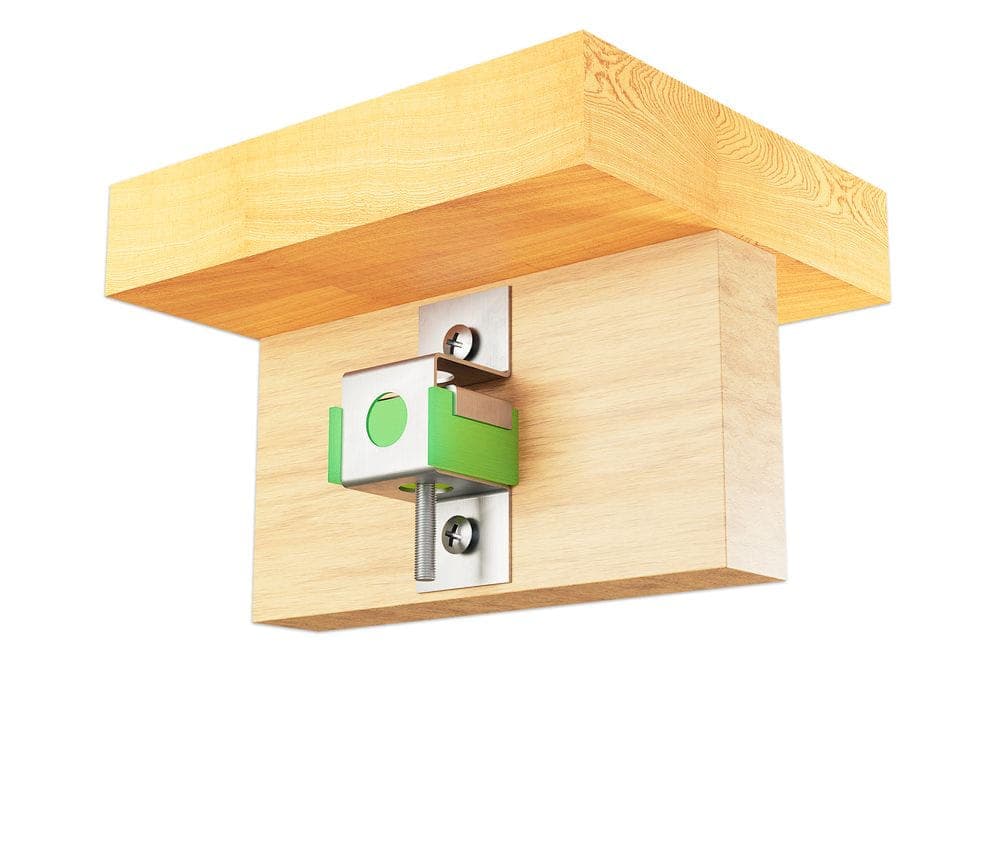

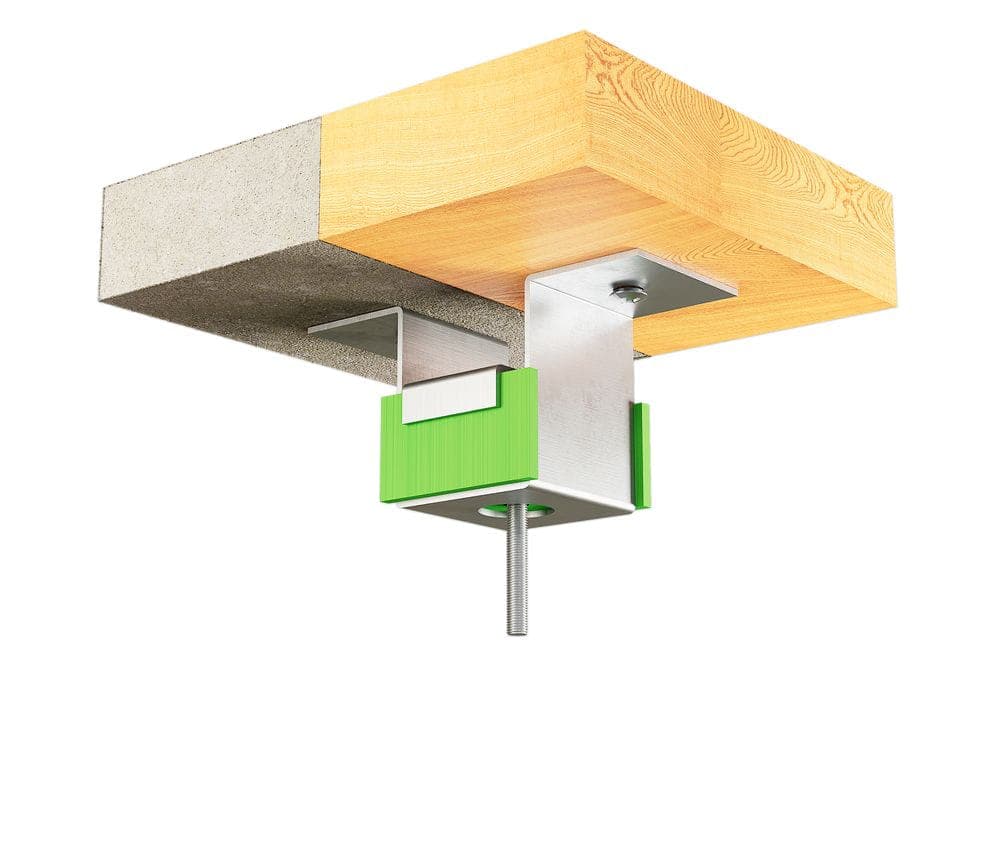

The EASYmount ceiling hanger is designed for acoustic decoupling of floating ceiling structures. Thanks to the integrated Sylomer® insert, transmission of contact noise and vibrations to the overhead structure is greatly reduced. Ideal for applications in commercial buildings, technical rooms, or other environments where sound transmission through ceilings needs to be minimised.
- Acoustic decoupling
- Flexible mounting
- Professional result
Downloads
Product sheetApplications
The EASYmount ceiling hanger is used, among other things, for:
- Suspended ceilings in commercial construction
- Acoustic ceiling systems in technical rooms
- Ceiling constructions in studios or office environments
- Projects with high requirements for sound insulation
Processing
The EASYmount ceiling hanger hangers are installed in a grid of 60 x 100 cm. A metal stud track is mounted onto this using a mounting bracket. Perpendicular to this, a second layer of tracks (metal or wood) is installed at a centre-to-centre distance of 30 cm. For optimal sound insulation, cavity fill is placed between the ceiling joists. The construction is then finished with a double layer of cladding, such as plasterboard or fiberboard.
Dimensions
Dimensions of EASYmount ceiling hanger:
- Height: 100 mm
- Width: 40 mm
- Screw size: M6

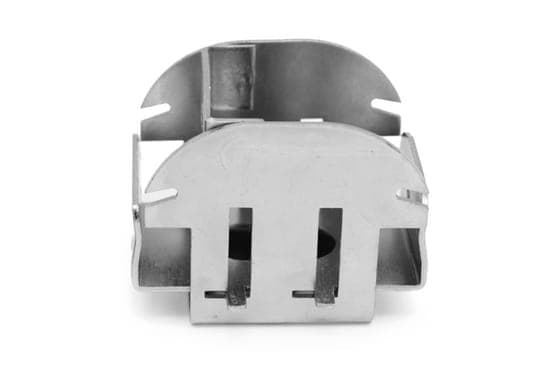

Dimensions EASYmount metal stud (optional):
- Height: 51 mm
- Width: 60 mm
- Screw diameter: M6
Sound insulation value
The EASYmount ceiling hanger contributes to a significant reduction of airborne and impact noise through the ceiling. Combined with a solid ceiling construction and cavity filling, this provides an effective solution for projects with acoustic requirements. The final sound insulation value depends on the overall ceiling assembly. Do you have a specific project or need technical advice? Feel free to contact us. We are happy to assist you.
