EASYdemp | Caraudio decoupling plates

EASYdemp Caraudio is specifically designed for the automotive industry and is already widely used in vehicles to reduce vibrations. Applying EASYdemp to metal plates dampens the vibration energy, resulting in a reduction of sound radiation. However, in many cases, it is not necessary to cover the entire surface; often, covering about 70% of the surface is sufficient for effective damping.

• Flame-retardant according to FMVSS 302, M2.
• Temperature resistance from -10 to +90 degrees Celsius.
• Resistant to water, oil, and diluted acids.
• Does not contain toxic or aggressive substances.

For thinner sheet materials such as those in car doors, we recommend covering at least 60% of the surface with EASYdemp Standard. For thicker sheet materials, such as the floor panel, bulkhead, or when used in speaker enclosures, you can also opt for EASYdemp Xtra for additional damping.

You can easily cut or trim EASYdemp to size.

Due to its flexibility, EASYdemp is well-suited for curved surfaces.

Ensure that the surface is dry, dust-free, and grease-free before applying EASYdemp.

When applying, it's important to avoid trapping air bubbles.

Avoid working with EASYdemp at temperatures below 15 degrees Celsius.

To guarantee the performance of the adhesive layer, you should apply our self‑adhesive products within six months of purchase.

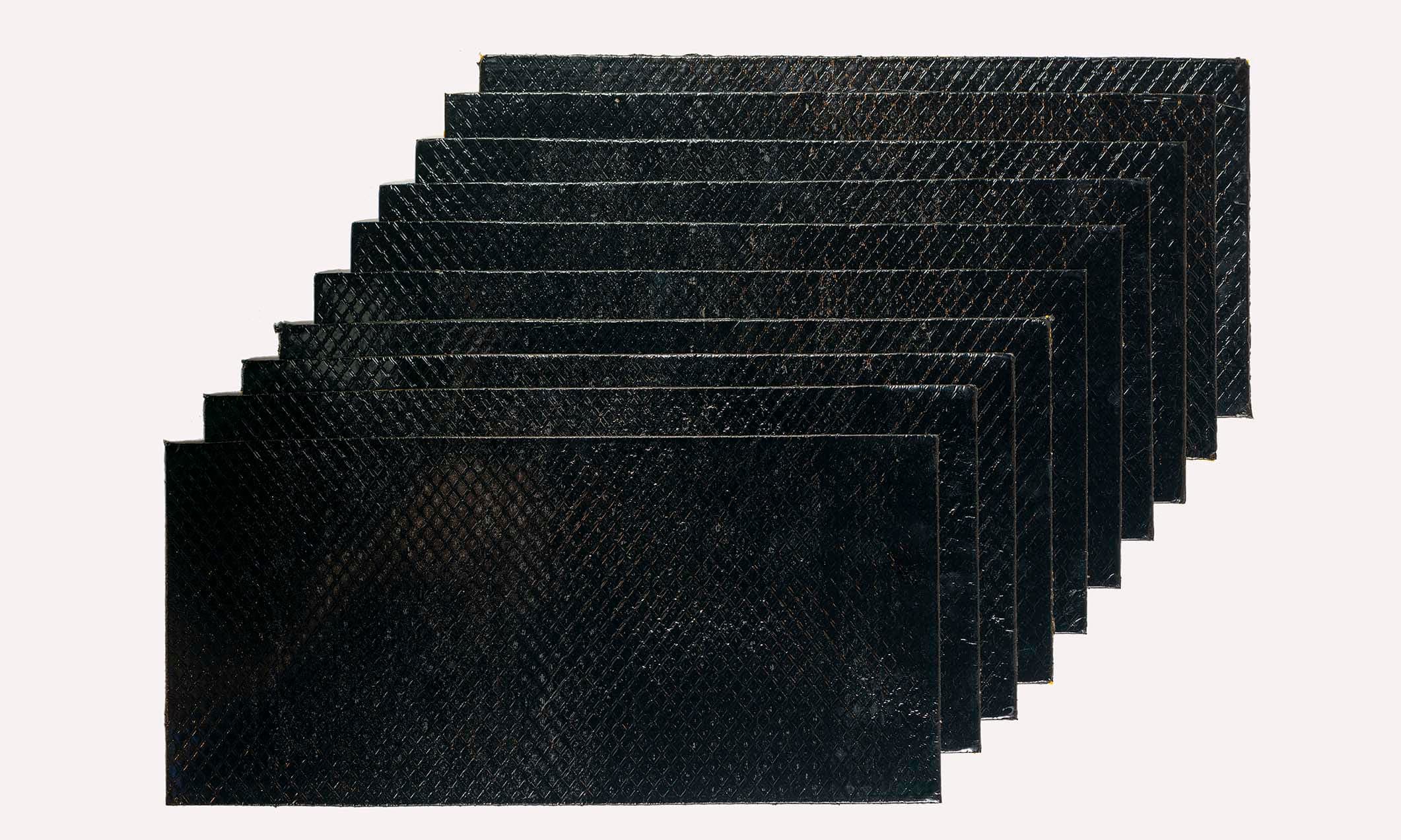

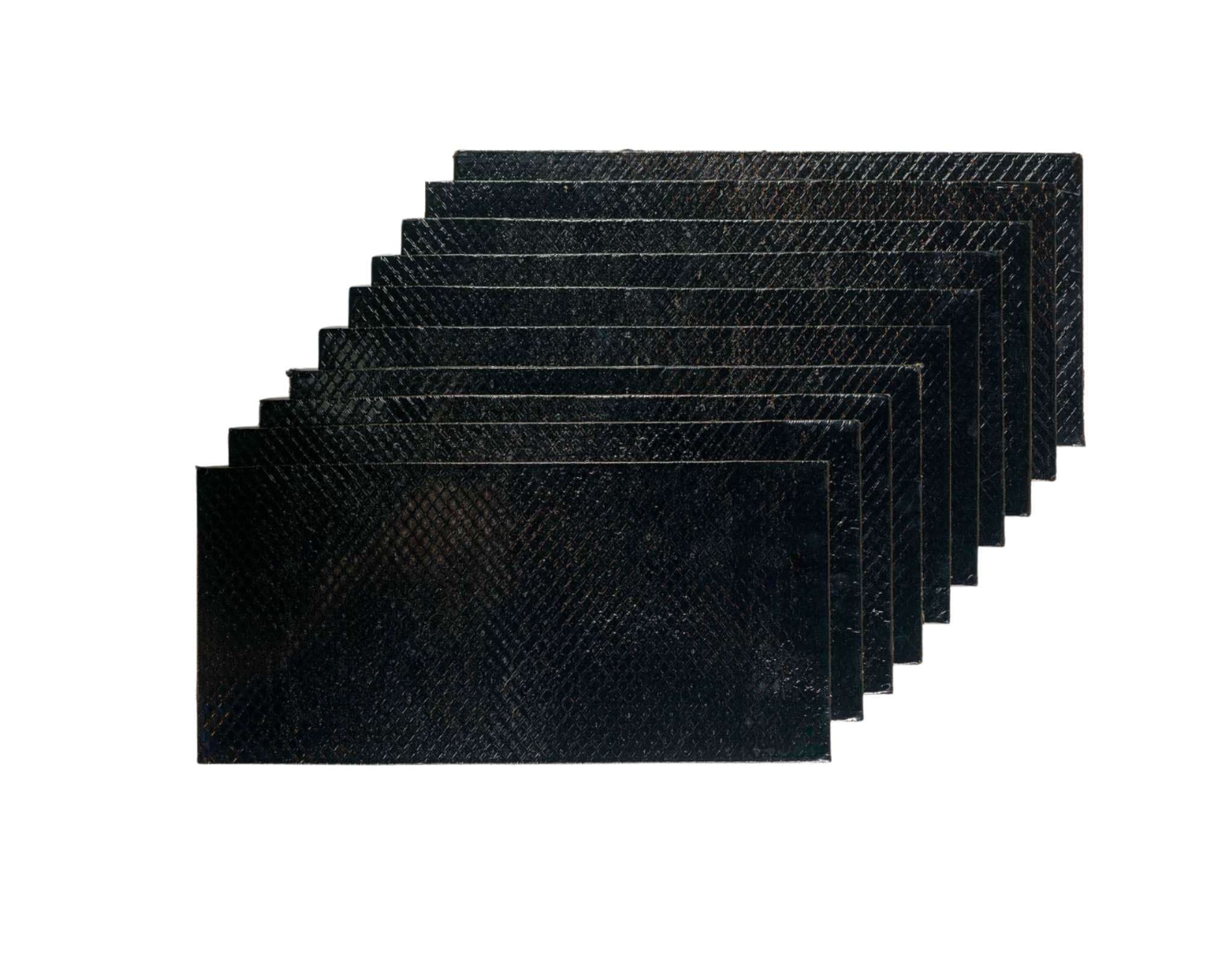

EASYdemp is available in the following types:

• EASYdemp Normal has a weight of 3.5 kg/m2 (thickness of 2 mm). Sold in sets of 10 plates (50 x 25 cm each = 1.25 m2 in total).
• EASYdemp Xtra has a weight of 7.5 kg/m2 (thickness of 4 mm). Sold in sets of 5 plates (50 x 25 cm each = 0.625 m2 in total).

While we strive to conduct quality controls to the best of our ability, we cannot guarantee the absence of visual deviations, such as differences in color, streaking, or irregular cells. We want to emphasize that no rights can be derived from these deviations.

The EASYdemp | Caraudio decoupling plates are specially designed for automotive applications because they effectively reduce resonances in bodywork. These resonances are caused by road noise and vibrations generated by the engine or audio system. Thanks to their compact size, the plates are easy to handle.

No, full coverage is not always necessary. To effectively reduce resonances, it is generally sufficient to cover approximately 70% of the surface evenly.

If you want to achieve both de-dremeling and an additional insulating effect, 100% coverage is recommended. This ensures the entire surface has extra mass, which contributes to further reduction of sound transmission.

Due to additional mass being added to the existing sheet metal, these are less quickly brought into vibration. As a result, resonances are reduced and the noise comfort in the vehicle is improved.

Yes. Because the surrounding sheet metal resonates less, the overall sound is better brought out, even at low notes.

Note: hard and very low bass frequencies are often difficult to fully reduce. Additional measures are usually required in many cases.

Yes, the soundproofing panels can contribute to sound insulation. It is important that the entire sheet metal is covered, ensuring the surface is fully equipped with extra mass.

Yes, EASYdemp | Caraudio decoupling plates are suitable for use at elevated temperatures, provided they are not exposed to direct heat sources and sunlight for extended periods.

Yes. For an excellent noise reduction result, EASYdemp | Caraudio damping sheets are often combined with an additional layer of EASYfoam FireSeal.
