Sonair | Sonair 3.0 CO2
Whisper-quiet ventilation unit with CO2 sensor for the supply of clean air in the home
At the moment, you cannot order this product through our webshop. Please contact us by requesting a quote or asking a question using the buttons below.
- Whisper quiet
- Soundproof
- Air Purifying
At the moment, you cannot order this product through our webshop. Please contact us by requesting a quote or asking a question using the buttons below.
- Whisper quiet
- Soundproof
- Air Purifying

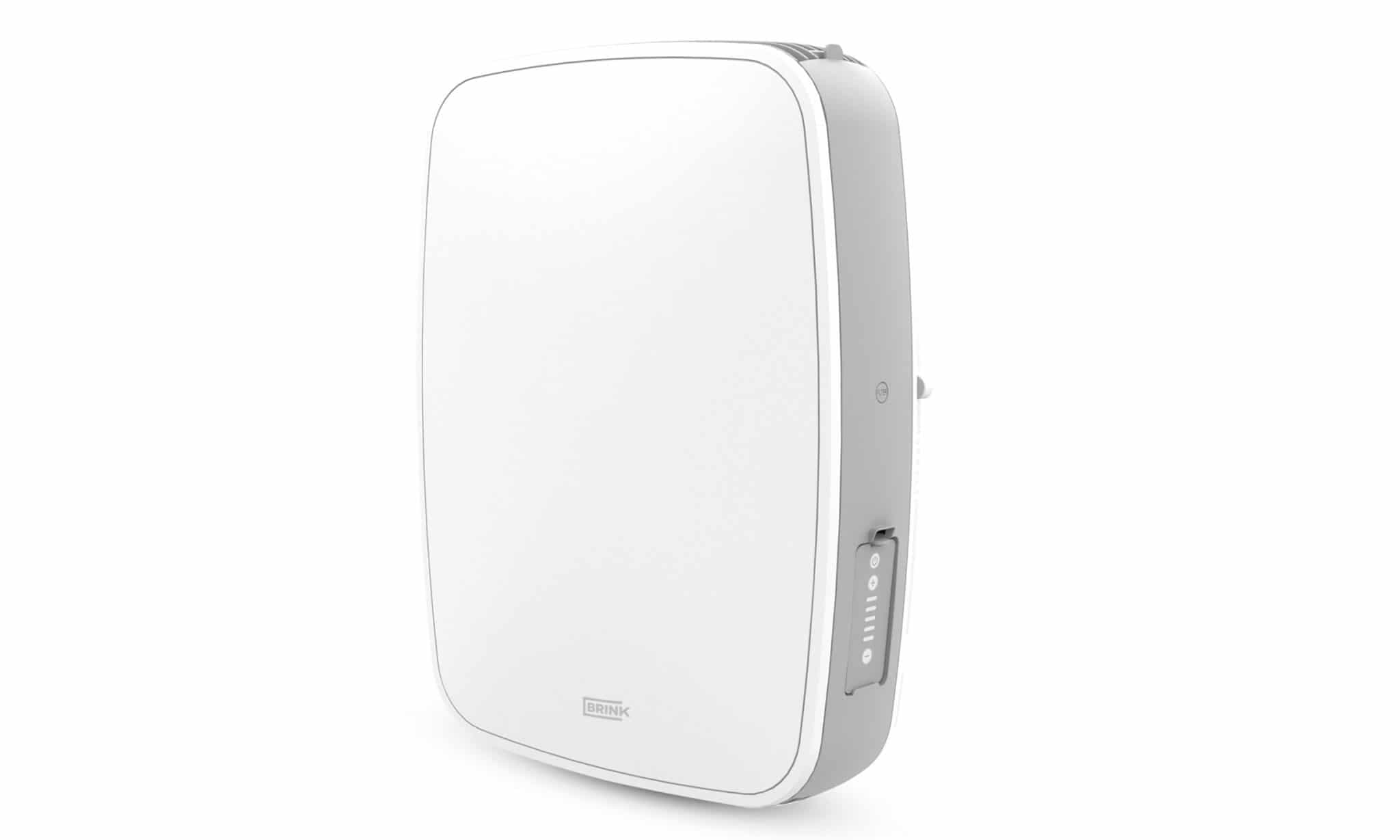

The Sonair 3.0 CO2 is a whisper-quiet ventilation device with a built-in CO2 control. Thanks to sound-absorbing materials, it consistently provides a supply of clean, filtered outdoor air without disturbing external noises. The built-in CO2 control adjusts the ventilation speed based on the current indoor air quality, ensuring that no more ventilation occurs than necessary. This makes the Sonair 3.0 CO2 energy-efficient and environmentally friendly.
The dimensions of the Sonair 3.0 are (H x W x D): 340 x 445 x 134 mm, with a weight of 5 kg. The Sonair 3.0 comes standard with an ISO Coarse 60% filter (G4) and a 1.9 m power cable. The ISO Coarse 60% filter is suitable for normal dust loads and removes 60% of particles larger than 10 μm.
- Active CO2 control for optimal air quality
- Always clean air
- No outside noise
Downloads
Installation instructionsInstallation
To install the Sonair 3.0 CO2, it should be mounted on the inside of the facade, preferably near a power outlet. For air intake, it is necessary to create an opening in the facade for the passage from outside to inside. In this opening, the duct can be placed, with an exterior wall grille. It is important to note that the duct and the wall grille must be ordered separately.
Available accessories
Wall Vents
Wall grille white
Wall grille for the Sonair 3.0 in white color.
Dimension (L × W): 12.5 × 12.5 cm.
Wall grille brown
Wall grille for the Sonair 3.0 in brown color.
Dimensions (L × W): 12.5 × 12.5 cm.
Filters
G4-filter
Replaceable filter for the Sonair 3.0 and Sonair 3.0 CO₂. Suitable for environments with normal dust levels.
- Removes approximately 60% of dust particles
- Effective against, among others, hair, pollen, and sand
- Dimensions: 255 × 54 mm
F7-filter
High-quality fine dust filter for the Sonair 3.0 and Sonair 3.0 CO₂. Ideal for moderate to high dust load and for people with allergies.
- Removes approximately 99% of the finest dust particles
- Effective against pollen, cement dust, and house dust mite particles
- Dimensions: 251 × 55 mm
Conduit
Through pipe for use with the Sonair 3.0.
Dimension (Ø × L): 10 × 50 cm.
